Front and rear lights
for model cars
e.g. mini-z 1:18 / 1:24 until the body length of about 35cm
SET8-MA
(4x LED front / rear LEDs 4x)
** LED lighting premium class: **
- High quality materials
- High-quality workmanship are waiting for you ...
Product description:
SOLDER NO LONGER NEEDED! | READY FOR INSTALLATION READY!
Envious eyes are GUARANTEED!
specification:
- Front lighting
4 ultra bright cold white light (xenon effect) luminosity of LEDs 3mm per 10.000mcd
- Rear lights
4 mega-bright red LEDs 3mm luminosity of each 6.000mcd
- Includes 8 chrome frames 3mm
simplifies installation and focuses the light
- incl. connection optionally with:
- 9 volt battery clip for 9 V akkkus/battery
- Servo plug 4.5-6 volts
- BEC plug 4.5-9 volts
other plug systems on request
- Including a small slide switch
the ON / OFF switch
(Dimensions: 12mm/Lochabstand: 19mm/Länge: 23mm)
- Sufficient cable (about 18cm)
for installation for most models up to a body length of 35cm
(shorter / longer possible> price on request)
Extras:
* All soldered contacts have been sealed clean with shrink tubing,
thus 99% Splashproof!
Installation Tips:
Installation is simple ....
- At the appropriate point of the body, the holes are drilled
- The chrome versions are then inserted into the holes and straight aligned
- From the rear, the chrome versions fixed with hot glue
- The LEDs are inserted only from behind the chrome versions.
- The cable into the body lay and tape or hot glue
- The switch is connected to an appropriate location of the body as well fastened or screwed
DONE ... Power-on and the night journey begin!
We are available after purchase, for questions regarding installation, etc. hesitate to e-mail service!
Not find the right? Does not fit? You want the lighting different?
No problem! Contact us! We manufacture according to customer!
Do not look directly into the bright LEDs that can lead to eye damage.
All pictures are examples. The cars (coaches) are not offered here!

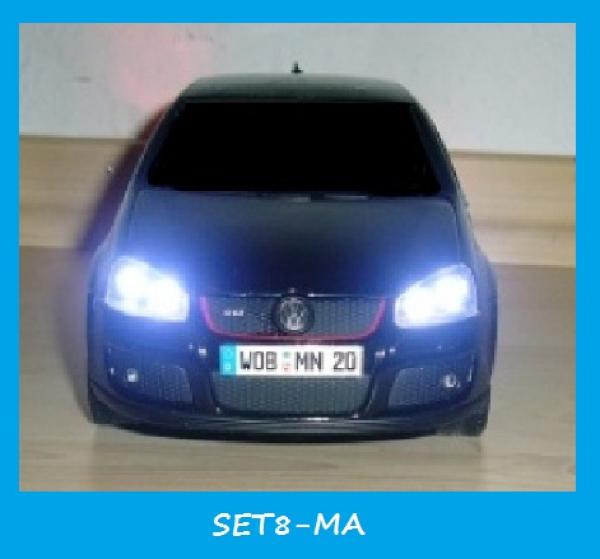

Example photos ....
